QA Containers & Specifications

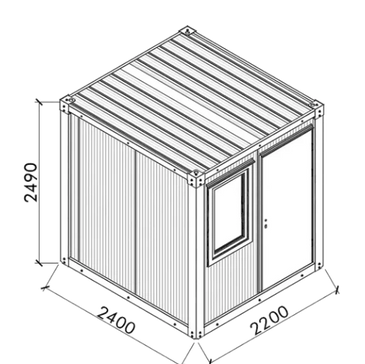

QA 240220
Exterior Dimensions
2400x2200x2490 mm
Interior Dimensions
2215x2065x2250 mm
Weight
app. 500 kg
- Specifications -
200 kg/m2 floor load capacity
Fully galvanised steel structure
RAL9002 (grey-white) electrostatic powder coating
15mm OSB floor board
with PVC floor covering
50mm EPS insulated ceiling panel
50mm EPS insulated ceiling panel
27/200 formed trapezoidal roof
500 mm flat-packheight
5-packed stack
(can be lifted together)
Steel door & PVC window
Electricity excluded

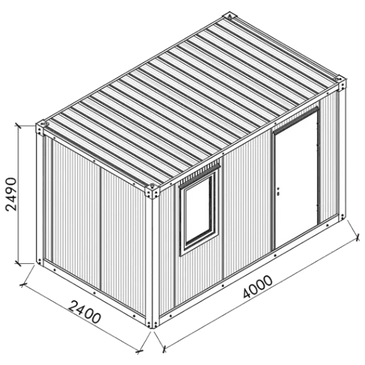

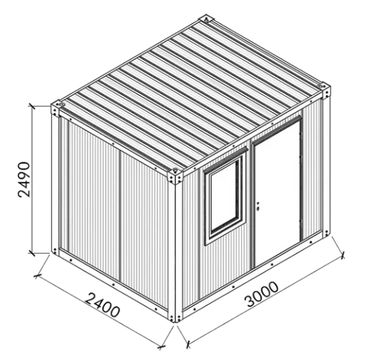

QA 240300
QA 240300
Exterior Dimensions
2400x3000x2490 mm
Interior Dimensions
2215x2815x2250 mm
Weight
app. 675 kg
QA 240400
QA 240400
QA 240300
Exterior Dimensions
2400x4000x2490 mm
Interior Dimensions
2215x3815x2250 mm
Weight
app. 810 kg

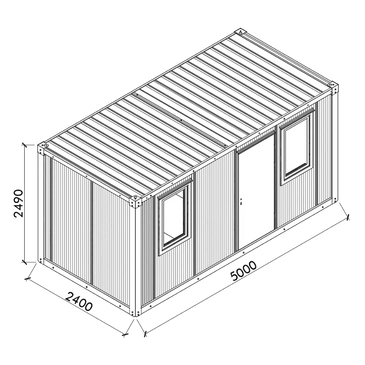

QA 240500
QA 240400
QA 240500
Exterior Dimensions
2400x5000x2490 mm
Interior Dimensions
2215x4815x2250 mm
Weight
app. 1.005 kg

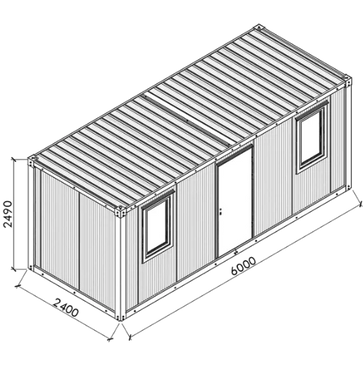

QA 240600
QA 240400
QA 240500
Exterior Dimensions
2400x6000x2490 mm
Interior Dimensions
2215x5815x2250 mm
Weight
app. 1.200 kg
QA Stacking & Transportation
Single Stack for easy lifting with 5 flat-packs
Flat-pack containers are prepared in sets of five (stacks).
Each 5-unit stack can be lifted and loaded as a single piece, ensuring a fast, practical, and safe loading process.
Weight of Flat Pack Stacks :
QA-240220 ----> 2.650,00 kg
QA-240300 ----> 3.520,00 kg
QA-240400 ----> 4.220,00 kg
QA-240500 ----> 5.200,00 kg
QA-240600 ----> 6.200,00 kg

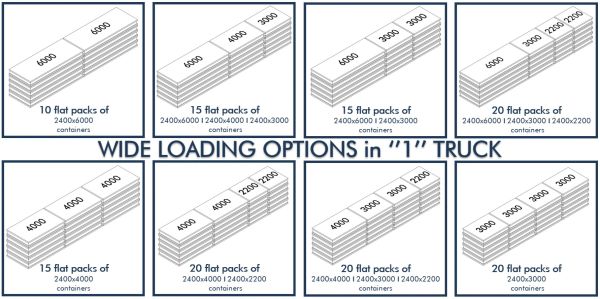

Various Loading Options
Different container stack variations in various sizes can be shipped using standard curtain-sided trailers.
This flexibility enables you to select the most efficient loading option, maintain product variety, and reduce transportation costs.
